13. Setup a SoC and a SIEM with a registration system

Introduction

During my internship last year at the TU/Eindhoven I worked as a SoC analyst and engineer. This internship gave me a broad scale of experience with Blue team security operation center solutions; one of the tasks I completed for example was adjusting the architecture of the existing SoC. The SoC existed of multiple components, one of them being Security Onion. This security stack is something I enjoyed working on/with. Thus I decided to implement this in my own network as well and use it as a learning goal.

Setup

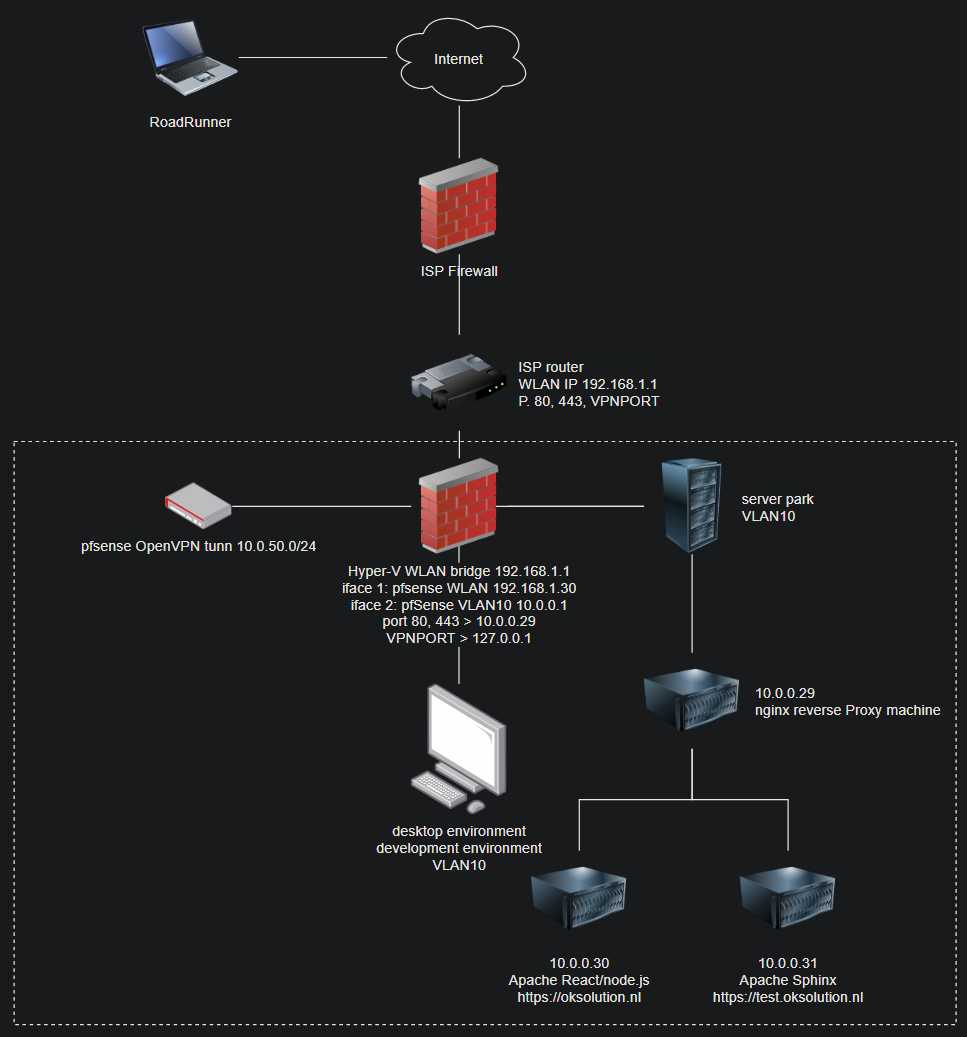

There’s a fair bit of information in the about page of these docs; but you will find a summary in this paragraph. I decided not to use the seclab provided by the college as I have little faith in the performance of this lab, and instead decided to use my own lab to implement Security Onion. Below you will see the current architecture of my lab.

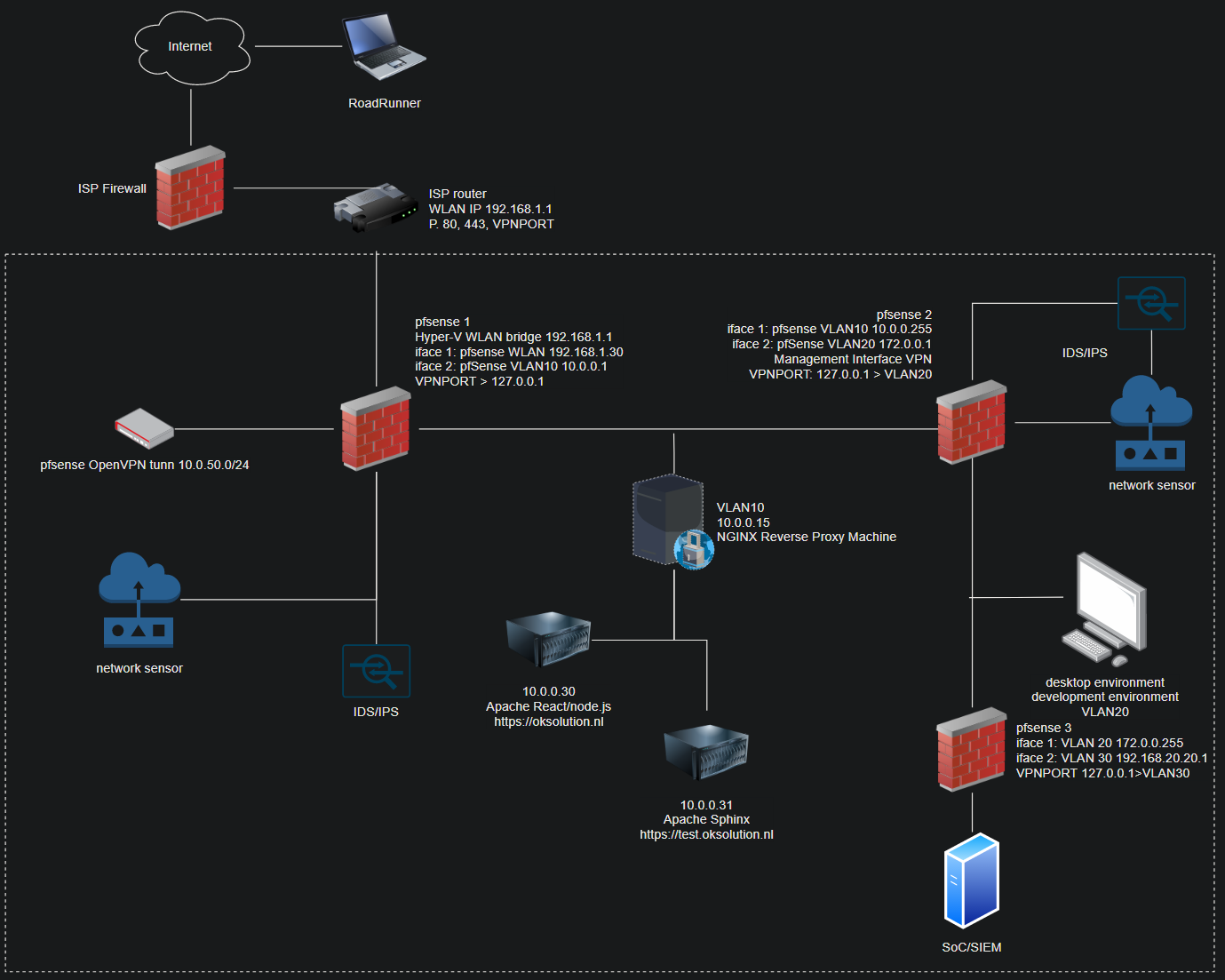

I agree with the consensus that this architecture isn’t ideal from a security POV. Why? The network segmentation isn’t present that well; the intention of this network is to guard the network devices that are in the WAN of my home router from being messed with in case a breach occurs. A more improved set-up would have the following setup:

Distributed deployment

There’s various ways of deploying Security Onion; most of my peers run it in standalone mode. In this modus, it is possible to run Security Onion on a single machine – which will then perform all of the tasks required. What tasks does Security Onion carry out?

• Making data index-able and generally managing it in a conventional manner

• As a sensor it can detect malicious traffic, anomalies, and various other suspicious traffic

• Display alerts & being able to register incidents and launch an incidence response

And many more; but these are the core functionalities of Security Onion, and in a standalone setup it does all of these tasks on a single machine. In a real world scenario, this is not recommended – it is better to seperate these tasks and use individual machines that are responsible for this that way the entire system can be scale-able.

That is why I will install Security Onion in a Distributed way; because of scaleability and being more close real-life.

Manager node

Installing Security Onion can be relatively easy if the so-setup doesn’t run into any problems. Most beginners will have issues with the setup likely due to the network setup of their virtual manager. My Security Onion manager will have 1 NIC, that being the vlan 10.

The manager node hosts few services, such as the SoC dashboard software (the display that overviews alerts being generated); and generally be the master in the salt setup. What does this mean? Well; Security Onion uses an architect called Salt – it can be comparible to Chef and Puppet. It allows for a SoC engineer to send commands to slaves. This is useful because for example, if the customer requests a custom Suricata rule to be added (maybe they’re a software engineering company with a custom application) it can be easily done by forcing the update through the master which will then update the slaves automatically.

Search node

This node is also known as the data node; most of the data gathered will be stored in this node and be index-able through Elastic.

Forward node

Also known as the sensor node, this node is rsponsible for picking up suspicious traffic, malware, and any anomalies. It does this by using Suricata and Zeek; in which there’s an implementation of ET Open (free) that can find and match patterns of incoming and outgoing traffic.

Proof of concept

When setup was completed, I decided it was time to test out the efficacy of the entire stack; to see if the entire environment was operational. My testing metholodogy involves using a known malware-bomb and replaying it. The goal of this test was to see if the stack was working end 2 end.

The first thing I checked was whether the grid was operational.

Then I downloaded the infected malware and begun replaying it to see if the alerts were going to get triggered. Here’s a list of malware you can download to perform a similar test: SecOnion docs:

tcpreplay -i bond0 2020-09-16-Qakbot-infection-traffic.pcap
tcpreplay -i bond0 maccdc2012_00000.pcap

Breakdown

tcpreplay is linux software that enables full packet replay

-i specifies the interface in which the packet needs to be replayed on

bond0 is the sniffing interface of the sensor node, replaying it on this interface allows it to be scanned by Suricata and Zeek

2020-09-etc. is a malware bomb that upon replaying should generate loads of alerts

After submitting the command, it is advised to ctrl+c after a few seconds since it will infinitely replay the packets otherwise. Doing this on SecLab is detrimental, and you could effectively bring the entire environment offline if using a malware bomb as shown above - this is one of the reasons I wanted to deploy this on my home lab.

Test results

As shown on the screenshot above, the entire stack is fully operational and works as intended. The downside of running this 24/7 is the extremely high RAM/CPU usage; so I turn it on occasionally to test features and expand the architecture.

In order to make sure the architecture was working I checked in my kibana dashboard for the alert information; where it was being generated and whatnot. I noticed it was properly saved in the data node.

Workshop

When my proof of concept was fully built I decided to show it during one of the workshops given by Stefan; I showed other students my set-up and several questions were asked in relation to its deployment. Most of the other students seemed to struggle with detecting traffic data.

Helping others

One group approached me a few days after the workshop where I showed my PoC because they were troubleshooting their Security Onion (for over 5 hours); and needed assistance. Their system worked on its own, but not when trying to detect data from other machines. I looked into the issue and within 5 minutes could tell the problem was in their pfsense machine – it wasn’t passing the port mirror traffic or promixious mode or whatever to their Security Onion. Solving this required the SecLab to properly support promixious mode – something that did not work properly. It had to be manually configured due to the cluster setup of the SecLab.

Another student approached me with a similar issue, this student was running in standalone modus and my advice was to replay the malware traffic on bond0, which this standalone machine most likely had. The issue was soon resolved.

There are a couple of other people I’ve assisted in trouble shooting with Security Onion as well.
